H6 Hydrone

H6 Hydrone

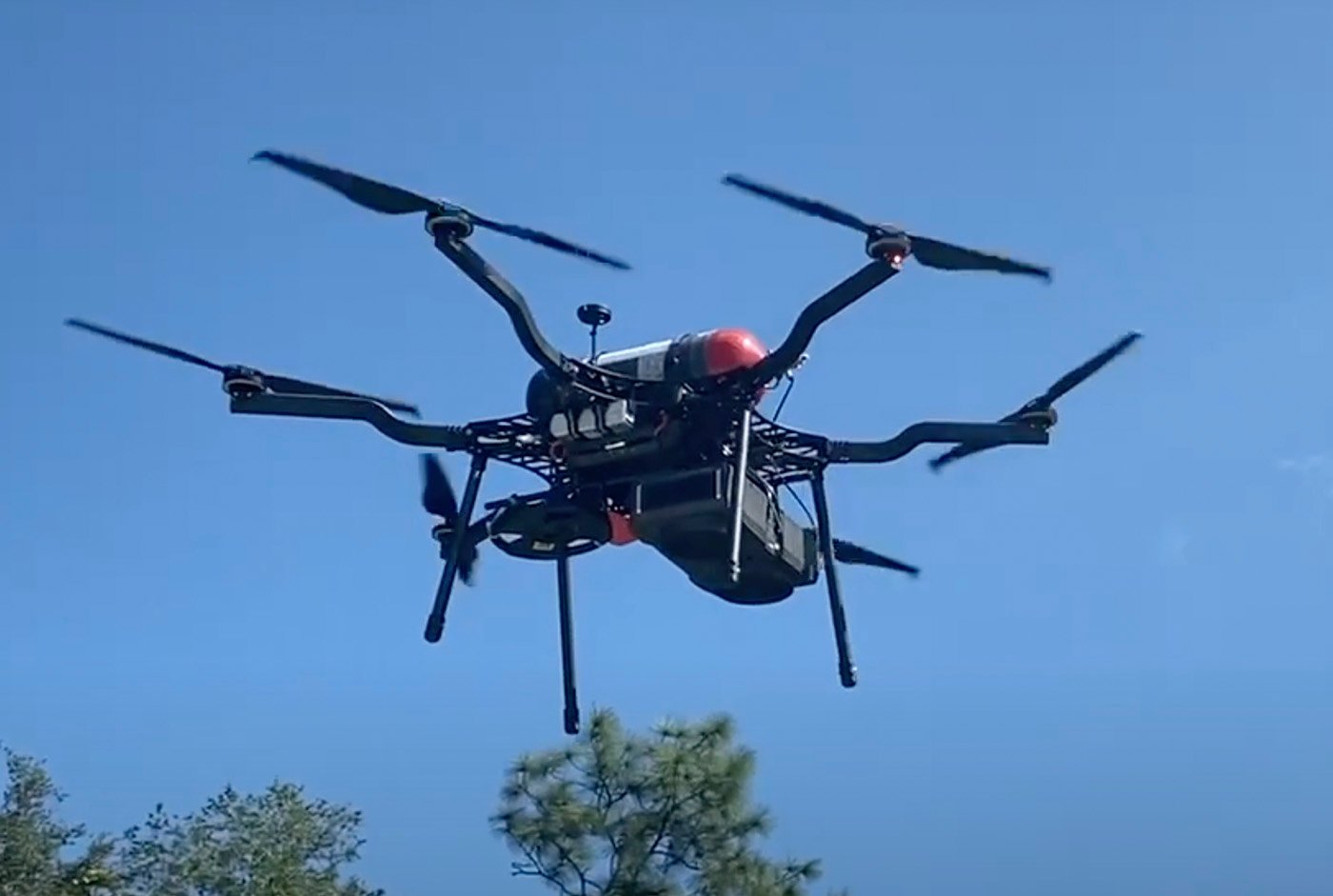

The Carrier H6 Hydrone is our all-new hybrid electric drone powered by our hydrogen fuel cell.

The Carrier H6 Hydrone  is equipped with Intelligent Energy’s 2.4kw FCPM (fuel cell power module). The recommended payload is 3kg allowing for up to 2.5hrs of flight.  The max payload is 5kg allowing up to 1.5hrs of flight.

The Carrier H6 Hydrone can be configured to carry scientific grade sensors, such as multispectral cameras, professional DSLRs for cinematography, and LiDAR.  The H6 Hydrone provides hybrid flight times while maintaining the nearly silent operation of an electric platform.

Features

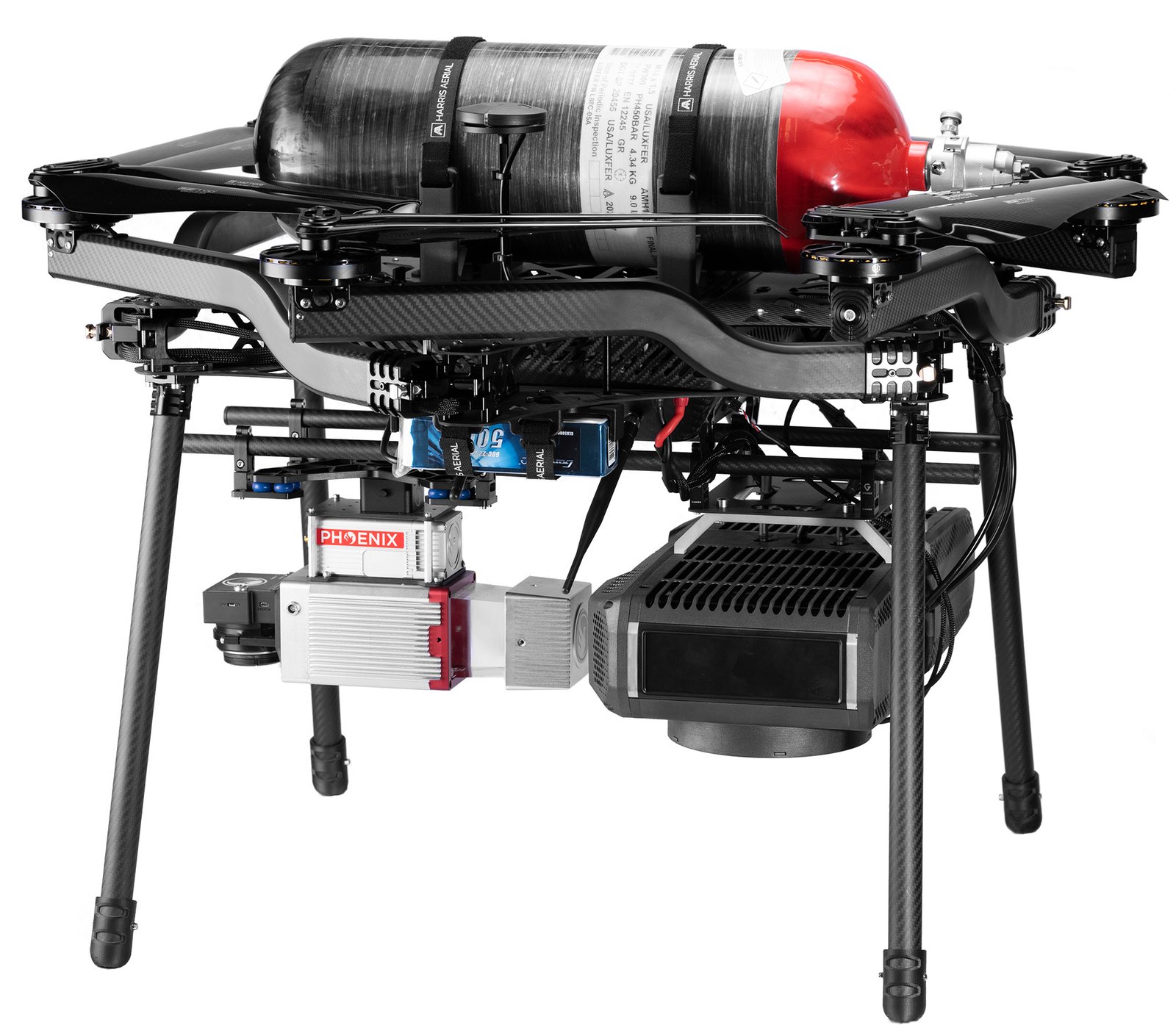

  • Folds down to 45% of its flight-ready size for easy transportation.
  • Functional airframe design allows for rapid field deployment.
  • 2.4kW Fuel Cell Power Module and back-up Battery Power
  • High Efficiency Hydrogen-Electric Conversion
    Extra power provided against harsh wind or aggressive flight maneuvers

Specifications

  • Max Payload: 5kg
  • Diagonal Wheelbase: 1590mm
  • Folded Diagonal Wheelbase: 658mm
    Propeller Size: 29″
  • All-Up Weight: 8.5kg (Empty); 14.5kg (with generator/FCPM)
  • Max Take-Off Weight: 25kg Max
    Speed: 15m/s
  • Flight Time: 1.5 hours with 5kg payload
  • Max Flight Time: 2+ hours
  • Voltage: 48V
  • Fuel: 10.8L 350bar Cylinder

2.4kW Fuel Cell Power Module

Intelligent Energy’s air-cooled fuel cell systems run on hydrogen and ambient air to produce clean DC power in a simple, cost-effective, robust and lightweight package.

  • Maximum Continuous Power: 2400W
  • Peak Power: Up to 8000W
  • Output voltage: 50V
  • Maximum Operating Altitude: 5000ft
  • Maximum regulator (cylinder) pressure: 350 bar / 5000 psi
  • Safety Features: Dual redundant power system and backup battery-CE and FCC Certified

Localized Hydrogen Refilling

Our H2 booster pump allows clients to source hydrogen supply cylinders locally and fill Hydrone cylinders without a middleman.

  • Refilling booster pump equipment is air compressor driven
  • Hydrogen T-Type cylinders from local gas supplier – $35-$50 each depending on order volume
  • 2 Drone flights per T-type cylinder
  • Fuel cost $10-$20/hr flying

Dimensions

Payload and Flight Times

The H6 Hydrone can fly its max payload of 5kg payload for 1.5 hours (90 minutes).
