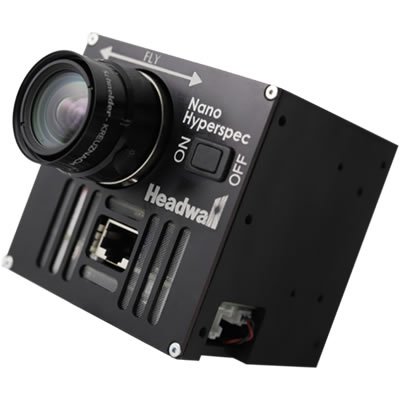

Nano_Black_Tilted-400

Headwall Nano Hyperspec

The Nano-Hyperspec sensor can be combined with optional GPS/IMU capabilities to provide an airborne configuration that is small, light, and fully integrated. The total sensor package with data processor and storage weighs approximately 1.5 lb. (0.6 kg) and measures a scant 3 inch x 3 inch x 4.7 inch (76.2mm x 76.2mm x 119.4mm).

Contact Us For Quote

Description

• Professional airborne performance
• Research-grade hyperspectral data
• High payload capacity, long-duration flight times
• Headwall-customized stabilizing gimbal
• Multiple flight-control redundancies
• 270 spectral bands (VNIR 400-1000nm)
• Aberration-corrected imaging, wide FOV
• Airborne hyperspectral software
• Internal SSD data storage
• Maximum Frame Rate up to 350HzNano-Hyperspec

Product Specifications

Wavelength Range400-1000
Spatial Bands640
Spectral Bands270
Dispersion/Pixel (nm/pixel)2.2
FWHM Slit Image (nm)6
Integrated 2nd order filterYes
f/#2.5
LayoutAberration-corrected concentric
Entrance Slit Width20
Bit depth (bits)12
Maximum Achievable Frame Rate (Hz)350
Detector pixel pitch7.4
Max Power/ Max Power with GPS13/15
Storage Capacity (Gb)480(~130 minutes at 100fps)
Weight without lens, GPS (lb /kg)1.2/0.5
Operating Temperature (Celsius)0 to 5
